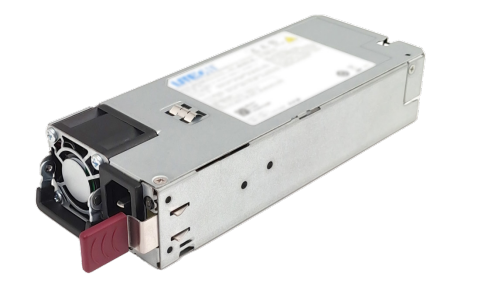

1300W AC & 240V HVDC Power Supply (LT-R1-Platinum-Light Load and High Efficiency)

Rated input voltage range

·     100 VAC to 120 VAC @ 1000 W

·     200 VAC to 240V AC @ 1300W

·     192 VDC to 288 VDC (240 HVDC power source) @ 1300 W

Rated input current

·     12 A @ 100 VAC to 120 VAC

·     7 A @ 200 VAC to 240 VAC

·     7 A Max @ 240 VDC

Maximum rated heat dissipation

·     3982 BTU/hr @ 100 VAC

·     5091 BTU/hr @ 220 VAC

·     5075 BTU/hr @ 240 VAC

·     5078 BTU/hr @ 240 VDC

·     5057 BTU/hr @ 270 VDC

Maximum rated output power

1300 W

Frequency

50/60 Hz @ 100 VAC to 240 VAC

Efficiency at 50% load

80 Plus Platinum

Temperature

·     Operating: 0°C to 55°C (32°F to 131°F)

·     Storage: –40°C to +85°C (–40°F to +185°F)

Operating humidity

5% to 90%

Maximum altitude

5000 m (16404.20 ft)

Redundancy

Yes

Cold backup

Yes
