Computing |
2 × Intel® Xeon® Scalable processors (Up to 28 cores and maximum 165 W power consumption) |
|
Chipset |
Intel® C621 |
|
Memory |
24 × DDR4 DIMMs 3.0 TB (maximum) (Up to 2933 MT/s data transfer rate and support for both RDIMM and LRDIMM) (Up to 12 Intel ® Optane™ DC Persistent Memory Module.(DCPMM) Optional NVDIMM* |
|
Storage controller |
Embedded RAID controller (SATA RAID 0, 1, 5, and 10) Mezzanine HBA card (SATA/SAS RAID 0, 1, and 10) (Optional) Mezzanine storage controller (RAID 0, 1, 5, 6, 10, 50, 60, 1E and Simple Volume) (Optional) Standard PCIe HBA cards and storage controllers (Optional) NVMe RAID |
|
FBWC |
4 GB cache |
|
Storage |

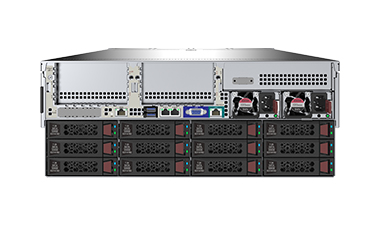

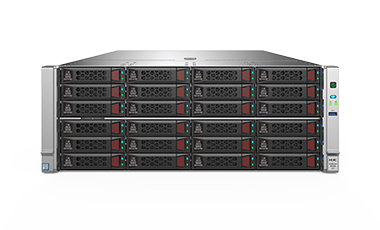

Support SAS/SATA/NVMe U.2 Drives Front 24LFF; Rear 12LFF+4LFF(2LFF)+4SFF;Support internal 4LFF* or 8SFF*;Optional 10 NVMe drives Support SATA M.2 optional part |
|
Network |
1 × onboard 1 Gbps HDM management Ethernet port and 2 x GE Ethernet port 1 × FLOM Ethernet adapter that provides 4 × 1GE copper ports ; 2 × 10GE fiber ports; FLOM support NCSI function PCIe 3.0 Ethernet adapters (Optional), Support 10G,25G,100G LAN Card or 56G/100G IB card |
|
PCIe slots |
10 × PCIe 3.0 slots (8 standard slots, one for Mezzanine storage controller, and one for Ethernet adapter) |
|
Ports |
Rear VGA connector and serial port 3 × USB 3.0 connectors (two at the rear and one at the front) |
|
GPU |
8 × single-slot wide or 2 x double-slot GPU modules* |
|
Optical drive |
External optical drive |
|
Management |
HDM (with dedicated management port) and H3C FIST |
|
Security |
Support Chassis Intrusion Detection TPM2.0 |
|
Power supply and Cooling |
2 x 550W/850W/1300W or 800W –48V DC power supplies (1+1 Redundant Power Supply) 80Plus certification, up to 94% energy conversion efficiency Hot swappable fans (supports 4+1 Redundancy) |
|
Standards |
CE，UL , FCC，VCCI，EAC, etc. |
|
Operating temperature |
5°C to 40°C (41°F to 104°F) Storage Temperature：-40~85ºC(-41°F to 185°F) The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device. |
|
Dimensions (H × W × D) |
4U Height Without a security bezel: 174.8 × 447 × 782 mm (6.88 × 17.60 × 30.79 in) With a security bezel: 174.8 × 447 × 804 mm (6.88 × 17.60 × 30.79 in) |
