CPU |
2 x 3rd generation Intel® Xeon® Ice Lake SP series (each processor up to 40 cores and maximum 270W power consumption) |
|
Chipset |
Intel® C621A |
|
Memory |
32 × DDR4 DIMMs (maximum) Up to 3200 MT/s data transfer rate and support for both RDIMM and LRDIMM Up to 16 Intel ® Optane™ DC Persistent Memory Module PMem 200 series ( Barlow Pass) |
|
Storage controller |
Embedded RAID controller (SATA RAID 0, 1, 5, and 10) Standard PCIe 4.0/3.0 HBA cards and storage controllers (Optional) NVMe RAID |
|
FBWC |
8 GB DDR4 cache, depending on model ,support supercapacitor protection |
|
Storage |

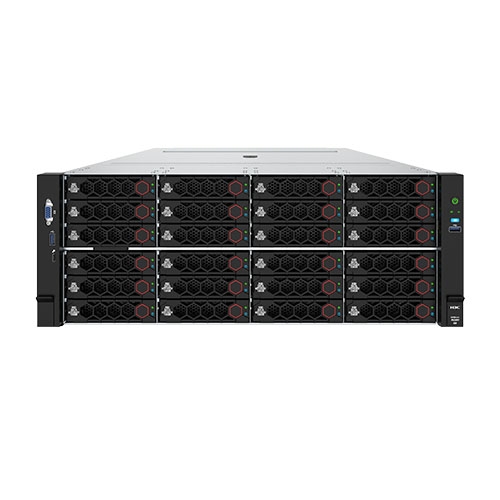

Support SAS/SATA/NVMe U.2 Drives Front 24LFF; Rear 12LFF+4LFF(2LFF)+4SFF;Support internal 4LFF* or 8SFF*;Optional 16 NVMe drives Support SATA M.2 optional part |
|
Network |
1 x onboard 1 Gbps HDM management Ethernet port 1 x x16 OCP3.0 Ethernet adapter support NCSI function and hot-swap PCIe 4.0/3.0 Ethernet adapters (Optional), Support 10G,25G,100G LAN Card or 56G/100G IB card |
|
PCIe slots |
10 x PCIe 4.0 standard slots and 1 x OCP3.0 Slots |
|
Ports |
2 x VGA connector (Front and Rear) and serial port 6 x USB 3.0 connectors (two at the front and two at the rear and two at the internal), 1 × Type C for HDM |
|
GPU |
8 x single-slot wide or 2 x double-slot GPU modules* |
|
Optical drive |
External optical drive |
|
Management |
HDM (with dedicated management port) and H3C FIST support LCD touchable smart model* |
|
Security |

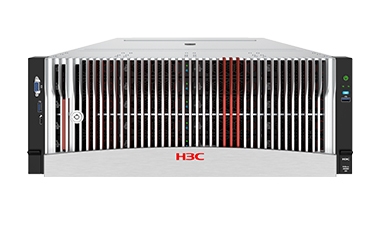

Intelligent Front Security Bezel * Support Chassis Intrusion Detection TCM1.0/TPM2.0 |
|
Power supply and Cooling |
2 x 800W(–48V)/1300W/1600W or 2 x 800w -48VDC power supply (1+1 Redundant Power Supply) 80Plus certification Hot swappable fans (supports 4+1 Redundancy) |
|
Standards |
CE CB TUV etc. |
|
Operating temperature |
5°C to 40°C (41°F to 104°F) Storage Temperature：-40~85ºC(-41°F to 185°F) The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device. |
|
Dimensions (H × W × D) |
4U Height Without a security bezel: 174.8 × 447 × 781 mm (6.88 × 17.60 × 30.75 in) With a security bezel: 174.8 × 447 × 809 mm (6.88 × 17.60 × 31.85 in) |
