Computing |
2 ×2nd Generation Intel Xeon Scalable Processors (CLX&CLX-R) (Up to 28 cores and maximum 205 W power consumption) |
|
Memory |
3.0 TB (maximum) 24 × DDR4 DIMMs (Up to 2933 MT/s data transfer rate and support of both RDIMM and LRDIMM) (Up to 12 Intel ® Optane™ DC Persistent Memory Module.(DCPMM) |
|
Storage controller |
Embedded RAID controller (SATA RAID 0, 1, 5, and 10) Standard PCIe HBA cards and storage controllers (Optional) |
|
FBWC |
8 GB DDR4-2133MHz |
|
Storage |

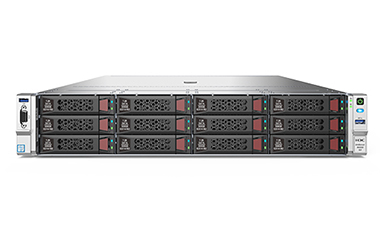

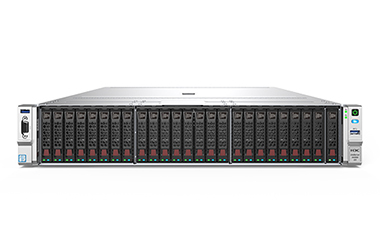

Front 12LFF + rear 4LFF and 4SFF or front 25SFF + rear 2SFF supports SAS/SATA HDD/SSD, supports up to 24 NVMe drives 480 GB SATA M.2 SSDs (Optional) SD cards |
|
Network |
1 × onboard 1 Gbps management network port 1 × mLOM Ethernet adapter that provides 4 × 1GE copper ports or 2 × 10GE copper/fiber ports 1 × PCIe Ethernet adapters (Optional) |
|
PCIe slots |
10 × PCIe 3.0 slots (eight standard slots, one for Mezzanine storage controller, and one for Ethernet adapter) |
|
Ports |

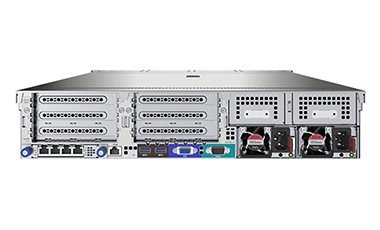

Front VGA connector (Optional) Rear VGA connector and serial port 5 × USB 3.0 connectors (one at the front, two at the rear, and two in the server) 1 × USB 2.0 connector (Optional) 2 × MicroSD slots (Optional) |
|
GPU |
3 × dual-slot wide GPU modules or 4 × single-slot wide GPU modules |
|
Optical drive |
External optical drive Only the 8SFF drive models support built-in optical drives |
|
Management |
HDM (with dedicated management port) and H3C FIST |
|
Security |
Support Chassis Intrusion Detection，TPM2.0 |
|
Power supply & ventilation |
Platinum 550W/800W/850W/1300W/1600W, or 800W –48V DC power supplies (1+1 redundancy) Hot swappable fans (supports redundancy) |
|
Standards |
CE，UL , FCC，VCCI，EAC, etc. |
|
Operating temperature |
5°C to 50°C (41°F to 122°F) The maximum operating temperature varies by server configuration. |
|
Dimensions (H × W × D) |

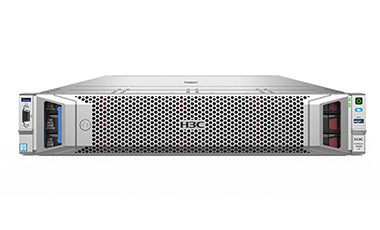

Without a security bezel: 87.5 × 445.4 × 748 mm (3.44 × 17.54 × 29.45 in) With a security bezel: 87.5 × 445.4 × 769 mm (3.44 × 17.54 × 30.28 in) |
