CPU |
2 x 3rd generation Intel® Xeon® Ice Lake SP series (each processor up to 40 cores and maximum 270W power consumption) |
|
Chipset |
Intel® C621A |
|
Memory |
32 x DDR4 DIMM slots , maximum 6.0 TB Up to 3200 MT/s data transfer rate RDIMM Up to 16 Intel ® Optane™ DC Persistent Memory Module PMem 200 series ( Barlow Pass) |
|
Storage controller |
Embedded RAID controller Standard PCIe HBA controller or storage controller, depending on model |
|
FBWC |
8 GB DDR4 cache, depending on model, support supercapacitor protection |
|
Storage |

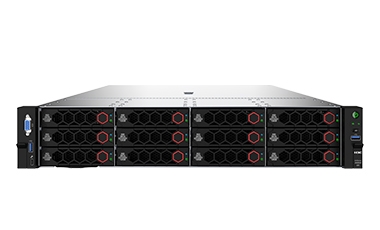

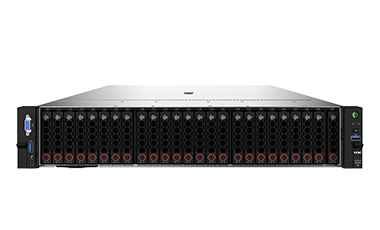

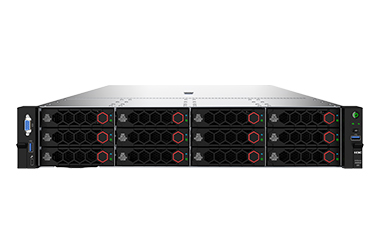

Up to front 12LFF bays, Rear 4LFF/4SFF bays Up to front 25SFF bays, Rear 4LFF/4SFF bays Front/Rear SAS/SATA HDD/SSD NVMe Drives, maximum 24 x U.2 NVMe Drives SATA or PCIe M.2 SSDs, 2 x SD card kit , depending on model |
|
Network |
1 x onboard 1 Gbps management network port 2 x OCP 3.0（x16）slots for 4 x 1GE or 2 x 10GE or 2 x 25GE NICs PCIe Standard slots for 1/10/25/40/100/200GE/IB Ethernet adapter |
|
PCIe slots |
14 x PCIe 4.0 standard slots, depending on model |
|
Ports |

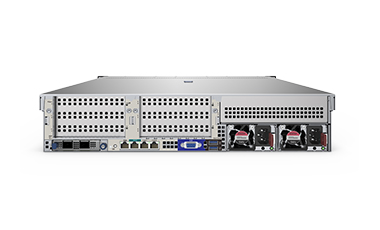

VGA ports (Front and Rear) and serial port (RJ-45) 6 x USB 3.0 ports (2 front, 2 rear, 2 internal) 1 dedicated management Type-C port |
|
GPU |
14 x single-slot wide or 4 x double-slot wide GPU modules, depending on model |
|
Optical drive |
External optical disk drive , optional |
|
Management |
HDM OOB system (with dedicated management port) and H3C iFIST/FIST, LCD touchable smart model |
|
Security |

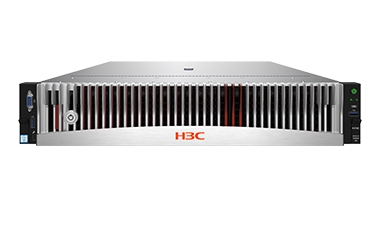

Intelligent Front Security Bezel Chassis Intrusion Detection TPM2.0 Silicon Root of Trust 2FA for HDM |
|
Power supply |
2 x Platinum 550W/800W/850W/1300W/1600W/2000/2400W (1+1 redundancy) , depending on model 800W –48V DC power supply (1+1 Redundancy) Hot swappable redundant fans |
|
Standards |
CE，UL , FCC，VCCI，EAC, etc. |
|
Operating temperature |
5°C to 45°C (41°F to 113°F) The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device. |
|
Dimensions (H × W × D) |
2U Height Without a security bezel: 87.5 x 445.4 x 748 mm (3.44 x 17.54 x 29.45 in) With a security bezel: 87.5 x 445.4 x 776 mm (3.44 x 17.54 x 30.55 in) |
