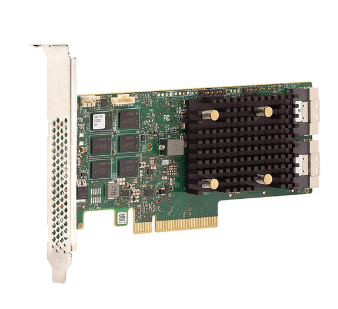

LSI MEGARAID SAS 9560-16I SPECIFICATIONS
|
SPECIFICATION |
VALUE |
|---|---|
| LIFECYCLE | Active |
| DISTRIB. INVENTORY | No |
| GENERATION | 12 Gb/s |
| MANAGEMENT SOFTWARE | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
| CACHE PROTECTION | CacheVault CVPM05 |
| PHYSICAL DIMENSIONS | Low profile 6.127” x 2.712” |
| HOST BUS TYPE | x8 lane PCI Express 4.0 |
| CACHE MEMORY | 8GB |
| INTERNAL PORTS | 16 |
| DATA TRANSFER RATES | 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant |
| DEVICES SUPPORTED | SAS/SATA: 240, NVMe: 24 |
| INTERNAL CONNECTORS | 2 x8 SFF-8654 (SlimSAS) |
| MTBF | >3,000,000 hours at 40° C |
| OPERATING TEMPERATURE | 0°C to 55°C |
| OS | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD |
| REGULATORY CERTIFICATIONS | Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
| WARRANTY | 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
| I/O PROCESSOR / SAS CONTROLLER | SAS3916 12Gb/s SAS Tri-Mode RAID-on-Chip (ROC) |
